明锦系列化工储罐、食品酿造罐、FRP/PVC、FRP/PVDF复合罐、相分离器、检查井、烟气脱硫装置及各类塔器等产品,广泛用于国内外石油、化工、电力、冶金、食品、酿造、医药、水利、和市政工程等领域。
1． 具有优良的力学、物理性能
玻璃钢罐制品的复合材料密度通常为1.8-2.1g/cm 3，约为钢材的1/4，比钢材、铸铁和塑料的比强度高。玻璃钢的物理力学性能、热膨胀系数与钢大体相当，热传导系数只有钢的0.5%，是一种很好的热和电的绝缘材料。
2． 耐化学腐蚀、使用寿命长
玻璃钢具有特殊的耐化学腐蚀性能，在储存腐蚀介质时，玻璃钢显示出其他材料所无法比拟的优越性。
3． 纤维缠绕玻璃钢储罐通常有立式储罐和卧式储罐两种。

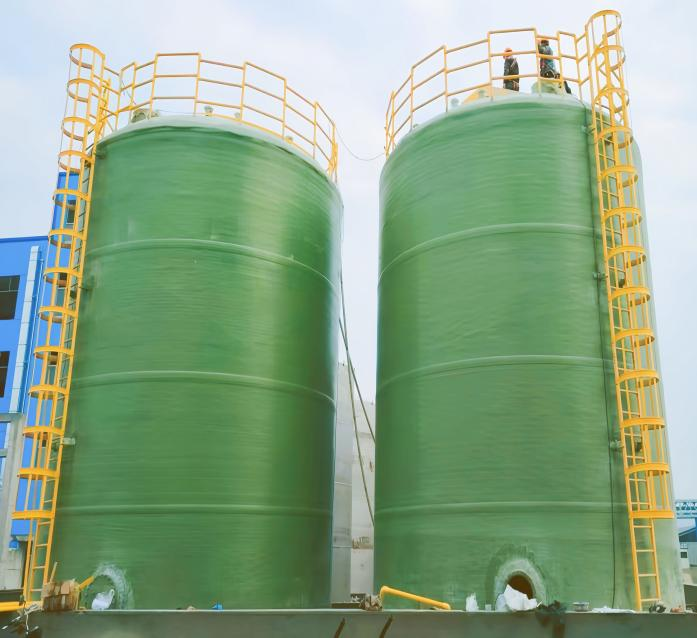

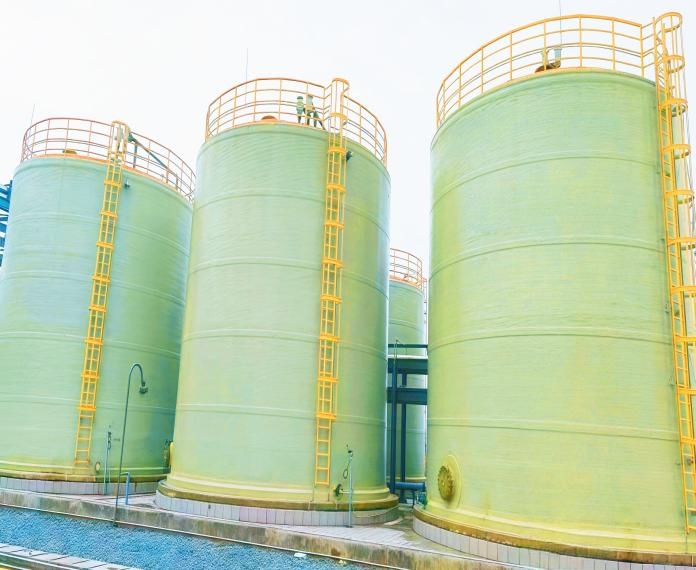

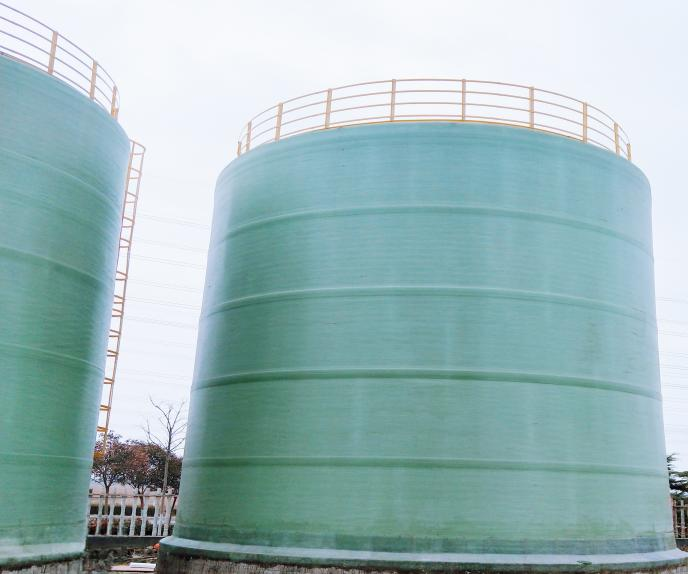

4． 玻璃钢立式储罐高度2m-15m,同时具有耐酸碱腐蚀,抗微生物腐蚀及无毒无味等多项功能。
5． 根据用户要求，添加整体加热及冷却设备（如添加聚胺酯保温层有效隔热）。
检验标准：产品执行行业标准 JC586.
立式储罐基本参数表
Parameter list of stand tank
Φ（mm) | V(m3) | H(mm) | h(mm) | W(kg) | Tt(mm) | Tb(mm) | Ts(mm) | Φ（mm) | V(m3) | H(mm) | h(mm) | W(kg) | Tt(mm) | Tb(mm) | Ts(mm) | |
1000 | 0.8 | 1100 | 850 | 126.5 | 7.0 | 8.0 | 8.0 | 2000 | 20.0 | 6540 | 6040 | 1016.4 | 9.0 | 9.5 | 10.0 | |
1.0 | 1360 | 1110 | 139.7 | 7.0 | 8.0 | 8.0 | 25.0 | 8130 | 7630 | 1224.3 | 9.0 | 9.5 | 10.0 | |||
1.2 | 1600 | 1360 | 152.9 | 7.0 | 8.0 | 8.0 | 30.0 | 9720 | 9220 | 1433.3 | 9.0 | 9.5 | 10.0 | |||
1.3 | 1740 | 1430 | 157.3 | 7.0 | 8.0 | 8.0 | 2500 | 15.0 | 3310 | 2780 | 770.0 | 9.0 | 10.0 | 9.0 | ||
1.5 | 1999 | 1740 | 165.0 | 7.0 | 8.0 | 8.0 | 18.0 | 3920 | 3392 | 898.7 | 9.0 | 10.0 | 10.0 | |||
2.0 | 2630 | 3380 | 196.9 | 7.0 | 8.0 | 8.0 | 20.0 | 4330 | 3800 | 965.8 | 9.0 | 10.0 | 10.0 | |||
2.5 | 3270 | 3020 | 220.0 | 7.0 | 8.0 | 8.5 | 25.0 | 5340 | 4810 | 1188.0 | 9.0 | 10.0 | 11.0 | |||
1400 | 2.0 | 1420 | 1070 | 213.4 | 8.0 | 8.0 | 8.0 | 30.0 | 6360 | 5830 | 1371.7 | 9.0 | 10.0 | 11.0 | ||
2.5 | 1740 | 1390 | 237.6 | 8.0 | 8.0 | 8.0 | 35.0 | 7580 | 6850 | 1678.6 | 9.0 | 10.0 | 12.0 | |||
3.0 | 2070 | 1720 | 247.5 | 8.0 | 8.0 | 8.0 | 40.0 | 8400 | 7870 | 1878.8 | 9.0 | 10.0 | 12.0 | |||
3.5 | 2390 | 2040 | 270.6 | 8.0 | 8.0 | 8.0 | 3000 | 25.0 | 3790 | 3040 | 1273.8 | 10.0 | 11.0 | 11.0 | ||
4.0 | 2720 | 2370 | 294.8 | 8.0 | 8.0 | 8.0 | 30.0 | 4500 | 3750 | 1527.9 | 10.0 | 11.0 | 12.0 | |||
4.5 | 3040 | 2690 | 317.9 | 8.0 | 8.0 | 8.5 | 40.0 | 5910 | 5160 | 1821.6 | 10.0 | 11.0 | 12.0 | |||
5.0 | 3370 | 3020 | 342.1 | 8.0 | 8.0 | 8.5 | 50.0 | 7330 | 6580 | 2315.5 | 10.0 | 11.0 | 13.0 | |||
1600 | 4.0 | 2120 | 1720 | 295.9 | 8.0 | 9.0 | 8.0 | 60.0 | 8740 | 7990 | 2685.1 | 10.0 | 11.0 | 13.0 | ||
5.0 | 2620 | 2220 | 336.6 | 8.0 | 9.0 | 8.0 | 70.0 | 10160 | 9410 | 3208.7 | 10.0 | 11.0 | 14.0 | |||
6.0 | 3120 | 2720 | 398.2 | 8.0 | 9.0 | 8.5 | 80.0 | 11570 | 10820 | 3606.9 | 10.0 | 11.0 | 14.0 | |||
7.0 | 3620 | 3220 | 443.3 | 8.0 | 9.0 | 8.5 | 3600 | 40.0 | 4230 | 3330 | 1853.5 | 11.0 | 12.0 | 12.0 | ||
8.0 | 4110 | 3710 | 487.3 | 8.0 | 9.0 | 8.5 | 50.0 | 5210 | 4310 | 2268.2 | 11.0 | 12.0 | 13.0 | |||
10.0 | 5110 | 4710 | 586.3 | 8.0 | 9.0 | 9.0 | 60.0 | 6200 | 5300 | 2548.7 | 11.0 | 12.0 | 13.0 | |||
11.0 | 5610 | 5210 | 633.6 | 8.0 | 9.0 | 9.0 | 70.0 | 7180 | 6280 | 2997.5 | 11.0 | 12.0 | 14.0 | |||
1800 | 8.0 | 3300 | 2850 | 484.0 | 9.0 | 9.5 | 8.5 | 80.0 | 8160 | 7260 | 3329.7 | 11.0 | 12.0 | 14.0 | ||
9.0 | 3690 | 3240 | 522.5 | 9.0 | 9.5 | 8.5 | 90.0 | 9150 | 8250 | 3885.2 | 11.0 | 12.0 | 15.0 | |||
10.0 | 4080 | 3630 | 566.5 | 9.0 | 9.5 | 9.0 | 100.0 | 10130 | 9230 | 4241.6 | 11.0 | 12.0 | 15.0 | |||
12.0 | 4870 | 4020 | 651.2 | 9.0 | 9.5 | 9.0 | 4000 | 50.0 | 4310 | 3310 | 2487.1 | 13.0 | 14.0 | 14.0 | ||
15.0 | 6050 | 5600 | 776.6 | 9.0 | 9.5 | 9.0 | 60.0 | 5110 | 4110 | 2788.5 | 13.0 | 14.0 | 14.0 | |||
18.0 | 7230 | 6780 | 902.0 | 9.0 | 9.5 | 9.0 | 70.0 | 5910 | 4910 | 3091.0 | 13.0 | 14.0 | 14.0 | |||
20.0 | 8010 | 7560 | 984.6 | 9.0 | 9.5 | 9.0 | 80.0 | 6700 | 5700 | 3488.1 | 13.0 | 14.0 | 15.0 | |||
2000 | 10.0 | 3350 | 2850 | 599.5 | 9.0 | 9.5 | 8.0 | 90.0 | 7500 | 6500 | 3811.5 | 13.0 | 14.0 | 15.0 | ||
12.0 | 3990 | 3490 | 651.2 | 9.0 | 9.5 | 8.0 | 100.0 | 8290 | 7290 | 4348.3 | 13.0 | 14.0 | 16.0 | |||
15.0 | 4940 | 4440 | 763.4 | 9.0 | 9.5 | 9.0 | 110.0 | 9090 | 8090 | 4653.0 | 13.0 | 14.0 | 16.0 | |||
18.0 | 5900 | 5400 | 853.6 | 9.0 | 9.5 | 9.0 | 120.0 | 9890 | 8890 | 5302.0 | 13.0 | 14.0 | 17.0 |
卧式储罐、压力容器
采用封头全包技术生产玻璃钢卧式储罐，压力容器是明锦公司的特有技术，采用高品质的原材料及严谨的工艺设计，是玻璃钢压力容器品质的保证。
卧式储罐基本参数表
Parameter list of horizontal tank
Φ（mm) | V(m3) | H(mm) | h(mm) | W(kg) | Tt(mm) | Tb(mm) | Ts(mm) | Φ（mm) | V(m3) | H(mm) | h(mm) | W(kg) | Tt(mm) | Tb(mm) | Ts(mm) | |
1000 | 0.9 | 1320 | 810 | 147.4 | 9.0 | 9.0 | 2.0 | 2000 | 10.0 | 3520 | 2520 | 754.6 | 12.0 | 11.0 | 2.0 | |
1.0 | 1440 | 940 | 156.2 | 9.0 | 9.0 | 2.0 | 12.0 | 4150 | 3150 | 873.4 | 13.0 | 11.0 | 2.0 | |||
1.2 | 1690 | 1190 | 170.5 | 9.0 | 9.0 | 2.0 | 15.0 | 5110 | 4110 | 1102.2 | 14.0 | 11.0 | 3.0 | |||
1.3 | 1820 | 1320 | 178.2 | 9.0 | 9.0 | 2.0 | 18.0 | 6060 | 5060 | 1258.4 | 14.0 | 12.0 | 3.0 | |||
1.5 | 2080 | 1580 | 196.9 | 10.0 | 9.0 | 2.0 | 20.0 | 6700 | 5700 | 1458.6 | 15.0 | 12.0 | 3.0 | |||
2.0 | 2710 | 2210 | 238.7 | 10.0 | 9.0 | 2.0 | 25.0 | 8290 | 7290 | 1771.0 | 15.0 | 12.0 | 4.0 | |||
2.5 | 3350 | 2850 | 267.3 | 10.0 | 9.0 | 2.0 | 30.0 | 9890 | 8890 | 2086.7 | 15.0 | 12.0 | 4.0 | |||
1400 | 2.0 | 1530 | 830 | 257.4 | 10.0 | 10.0 | 2.0 | 2500 | 15.0 | 3550 | 2500 | 1093.4 | 14.0 | 12.0 | 2.0 | |
2.5 | 1860 | 1160 | 287.1 | 10.0 | 10.0 | 2.0 | 18.0 | 4160 | 3110 | 1188.0 | 14.0 | 12.0 | 2.0 | |||
3.0 | 2180 | 1480 | 298.1 | 10.0 | 10.0 | 2.0 | 20.0 | 4560 | 3510 | 1280.4 | 14.0 | 12.0 | 2.0 | |||
3.5 | 2510 | 1810 | 328.9 | 10.0 | 10.0 | 2.0 | 25.0 | 5580 | 4530 | 1515.8 | 14.0 | 12.0 | 3.0 | |||
4.0 | 2830 | 2130 | 339.9 | 10.0 | 10.0 | 2.0 | 30.0 | 6600 | 5550 | 1702.8 | 14.0 | 12.0 | 3.0 | |||
4.5 | 3160 | 2460 | 398.2 | 11.0 | 10.0 | 2.0 | 35.0 | 7620 | 6570 | 1937.1 | 14.0 | 12.0 | 3.0 | |||
5.0 | 3480 | 2780 | 431.2 | 11.0 | 10.0 | 2.0 | 40.0 | 8640 | 7590 | 2305.6 | 15.0 | 12.0 | 3.0 | |||
1600 | 4.0 | 2260 | 1460 | 400.4 | 11.0 | 10.0 | 2.0 | 3000 | 25.0 | 4040 | 2540 | 1686.3 | 16.0 | 14.0 | 2.0 | |
5.0 | 2750 | 1950 | 457.6 | 11.0 | 10.0 | 2.0 | 30.0 | 4750 | 3250 | 1784.2 | 16.0 | 14.0 | 2.0 | |||
6.0 | 3250 | 2450 | 525.8 | 12.0 | 10.0 | 2.0 | 40.0 | 6160 | 4660 | 2289.1 | 17.0 | 14.0 | 2.0 | |||
7.0 | 3750 | 2950 | 588.5 | 12.0 | 10.0 | 3.0 | 50.0 | 7580 | 6080 | 2874.3 | 17.0 | 14.0 | 3.0 | |||
8.0 | 4250 | 3450 | 625.9 | 12.0 | 10.0 | 3.0 | 60.0 | 8990 | 7490 | 3279.1 | 17.0 | 14.0 | 3.0 | |||
10.0 | 5240 | 4440 | 751.3 | 12.0 | 10.0 | 4.0 | 70.0 | 10410 | 8910 | 3941.3 | 18.0 | 14.0 | 3.0 | |||
11.0 | 5740 | 4940 | 814.0 | 12.0 | 10.0 | 4.0 | 80.0 | 11820 | 10320 | 4440.7 | 18.0 | 14.0 | 3.0 | |||
1800 | 8.0 | 3440 | 2540 | 635.8 | 12.0 | 11.0 | 2.0 | 3600 | 60.0 | 6500 | 4700 | 3498.0 | 19.0 | 16.0 | 3.0 | |
9.0 | 3840 | 2940 | 691.9 | 12.0 | 11.0 | 2.0 | 70.0 | 7480 | 5680 | 3848.9 | 19.0 | 16.0 | 3.0 | |||
10.0 | 4230 | 3330 | 811.8 | 14.0 | 11.0 | 2.0 | 80.0 | 8460 | 6660 | 4474.8 | 20.0 | 16.0 | 3.0 | |||
12.0 | 5020 | 4120 | 942.7 | 14.0 | 11.0 | 3.0 | 90.0 | 9440 | 7640 | 4834.4 | 20.0 | 16.0 | 4.0 | |||
15.0 | 6200 | 5300 | 1206.7 | 15.0 | 11.0 | 3.0 | 100.0 | 10430 | 8630 | 5578.1 | 21.0 | 17.0 | 4.0 | |||
18.0 | 7380 | 6480 | 1431.1 | 15.0 | 12.0 | 4.0 | 110.0 | 11410 | 9610 | 6064.3 | 21.0 | 17.0 | 4.0 | |||
20.0 | 8160 | 7260 | 1569.7 | 15.0 | 12.0 | 4.0 | 120.0 | 12390 | 10590 | 6814.5 | 22.0 | 17.0 | 4.0 |
